| 产品型号 | 额定电压 (V) | 额定容量 (Ah) | 外形尺寸(mm) | 端子形式 | |||
| 长 | 宽 | 高 | 总高 | ||||
| LGH125 | 12 | 5 | 151 | 53 | 93 | 99 | T1/T2 |
| LGH127 | 12 | 7 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| LGH1218 | 12 | 18 | 181.5 | 76.5 | 167.5 | 167.5 | T3/T2 |
| LGH1220 | 12 | 20 | 181.5 | 76.5 | 167.5 | 167.5 | T3 |
| LGH1224 | 12 | 24 | 166 | 175 | 125 | 125 | T3 |
| LGH1225 | 12 | 25 | 166 | 175 | 125 | 125 | T3 |
| LGH1233 | 12 | 33 | 195 | 130 | 164 | 167 | T6-I |
| LGH1238 | 12 | 38 | 197 | 165 | 170 | 170 | T6 |
| LGH1240 | 12 | 40 | 197 | 165 | 170 | 170 | T6 |
| LGH1245 | 12 | 45 | 197 | 165 | 170 | 170 | T7 |
| LGH1250 | 12 | 50 | 257 | 132 | 200 | 200 | T8 |
| LGH1255 | 12 | 55 | 229 | 138 | 205 | 211 | T6 |
| LGH1265 | 12 | 65 | 348 | 167 | 178 | 178 | T6 |
| LGH1275 | 12 | 75 | 260 | 168 | 208 | 214 | T6 |
| LGH1280 | 12 | 80 | 260 | 168 | 208 | 214 | T6 |
| LGH1290 | 12 | 90 | 330 | 173 | 212 | 220 | T11 |

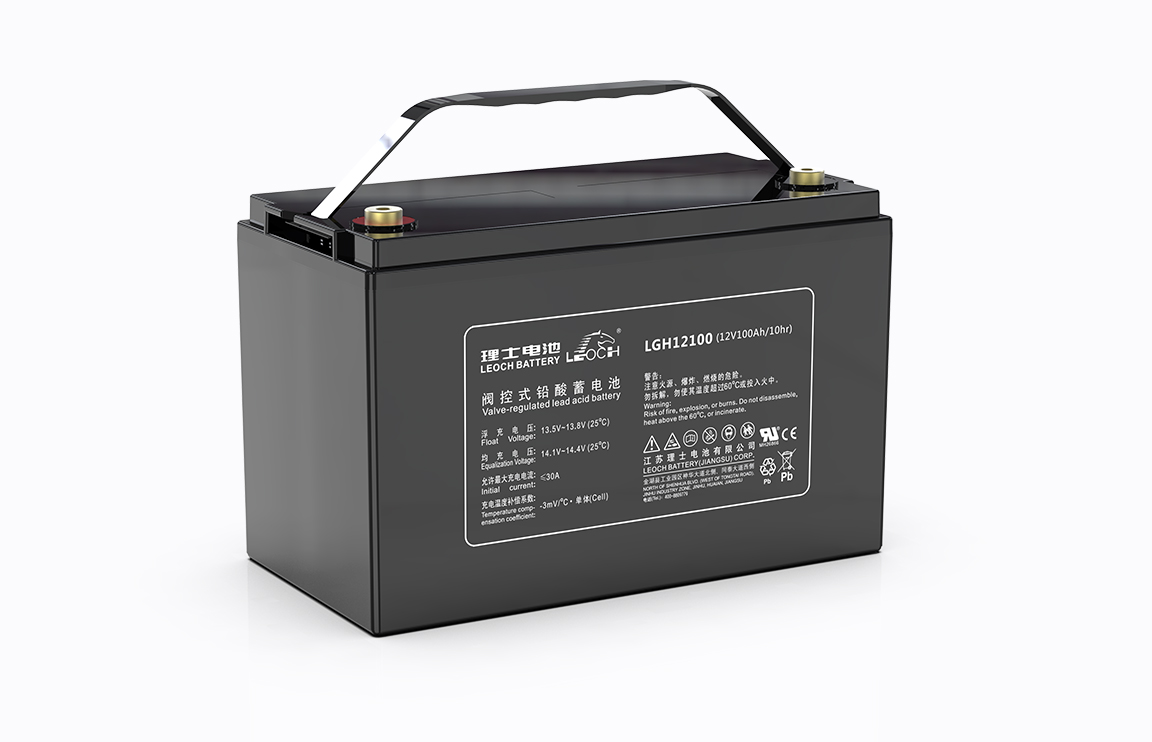

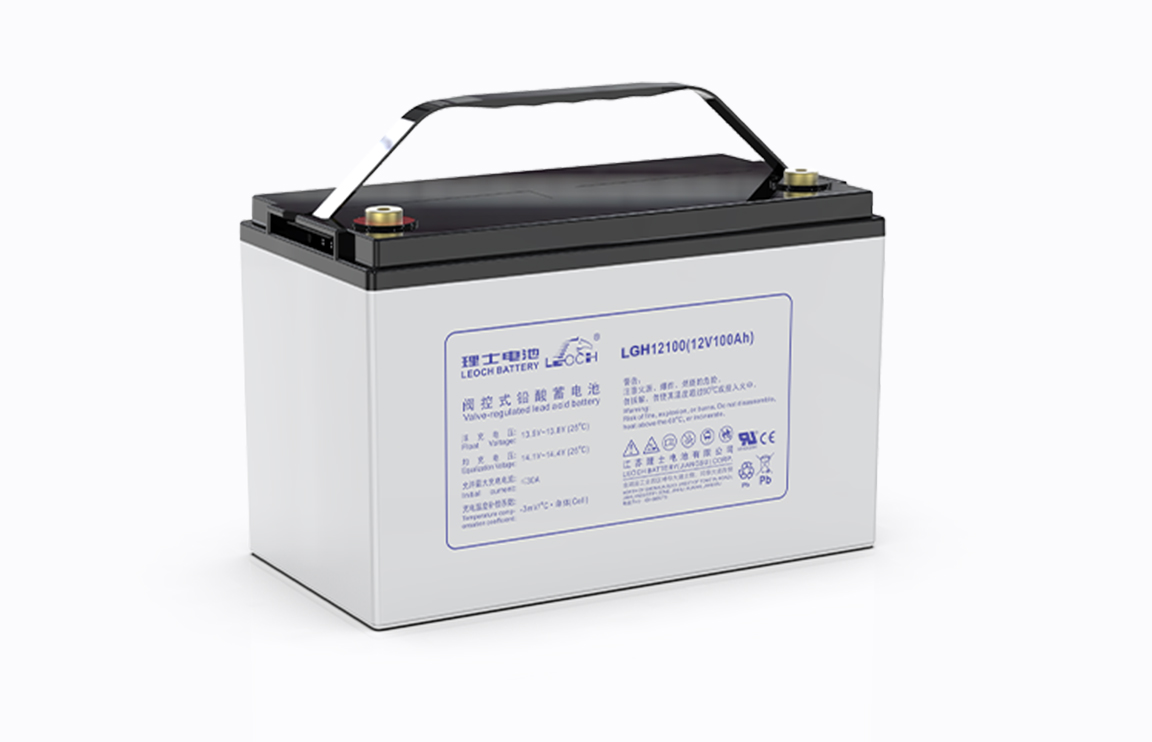

| LGH12100 | 12 | 100 | 330 | 173 | 212 | 220 | T11 |
| LGH12120 | 12 | 120 | 408 | 177 | 225 | 225 | T11 |
| LGH12140 | 12 | 140 | 483 | 170 | 238.5 | 238.5 | T11 |
| LGH12150 | 12 | 150 | 483 | 170 | 238.5 | 238.5 | T11 |
| LGH12180 | 12 | 180 | 532 | 207 | 214 | 220 | T11 |
| LGH12200 | 12 | 200 | 522 | 240 | 218 | 224 | T11 |
| LGH12225 | 12 | 225 | 522 | 240 | 218 | 224 | T11 |
| LGH12230 | 12 | 230 | 522 | 268 | 220 | 226 | T11 |
| LGH12250 | 12 | 250 | 522 | 268 | 220 | 226 | T11 |
| LGH12300 | 12 | 300 | 527 | 280 | 230 | 252 | 12 |
